GEONE - Variogram analysis and kriging for data in 3D (general)
Interpolate a data set in 3D, using ordinary kriging. Starting from a data set in 3D, the following is done:
basic exploratory analysis: variogram cloud / experimental variogram
fitting a covariance / variogram model, and cross-validation (LOO error)
interpolation by ordinary kriging (OK), simple kriging (SK)
sequential gaussian simulation (SGS) based on ordinary or simple kriging
Import what is required
[1]:
import numpy as np
import matplotlib.pyplot as plt
import pyvista as pv
import time
# import package 'geone'
import geone as gn
[2]:
# Show version of python and version of geone
import sys
print(sys.version_info)
print('geone version: ' + gn.__version__)
sys.version_info(major=3, minor=13, micro=7, releaselevel='final', serial=0)
geone version: 1.3.1
[3]:
pv.set_jupyter_backend('static') # static plots
# pv.set_jupyter_backend('trame') # 3D-interactive plots
Preparation - build a data set in 3D
A data set in 3D is extracted from a Gaussian random field generated based on a known covariance model, called the reference model which will be considered as unknown further.
Note: see the notebook ``ex_general_multiGaussian.ipynb`` for available covariance models and examples.
[4]:
cov_model_ref = gn.covModel.CovModel3D(elem=[
('spherical', {'w':9.5, 'r':[20, 10, 5]}), # elementary contribution (different ranges: anisotropic)
('nugget', {'w':0.5}) # elementary contribution
], alpha=30.0, beta=-40.0, gamma=20.0, name='ref model (anisotropic)')
[5]:
cov_model_ref
[5]:
*** CovModel3D object ***
name = 'ref model (anisotropic)'
number of elementary contribution(s): 2
elementary contribution 0
type: spherical
parameters:
w = 9.5
r = [20, 10, 5]
elementary contribution 1
type: nugget
parameters:
w = 0.5
angles: alpha = 30.0, beta = -40.0, gamma = 20.0 (in degrees)
i.e.: the system Ox'''y''''z''', supporting the axes of the model (ranges),
is obtained from the system Oxyz as follows:
Oxyz -- rotation of angle -alpha around Oz --> Ox'y'z'
Ox'y'z' -- rotation of angle -beta around Ox' --> Ox''y''z''
Ox''y''z''-- rotation of angle -gamma around Oy''--> Ox'''y'''z'''
*****
[6]:
# Plot covariance model in 3D
pp = pv.Plotter()
# pp = pv.Plotter(notebook=False) # open a plotter and specifying 'notebook=False'
cov_model_ref.plot_model3d_volume(plotter=pp)
cpos = pp.show(cpos=(165, -100, 115), return_cpos=True) # position of the camera can be specified

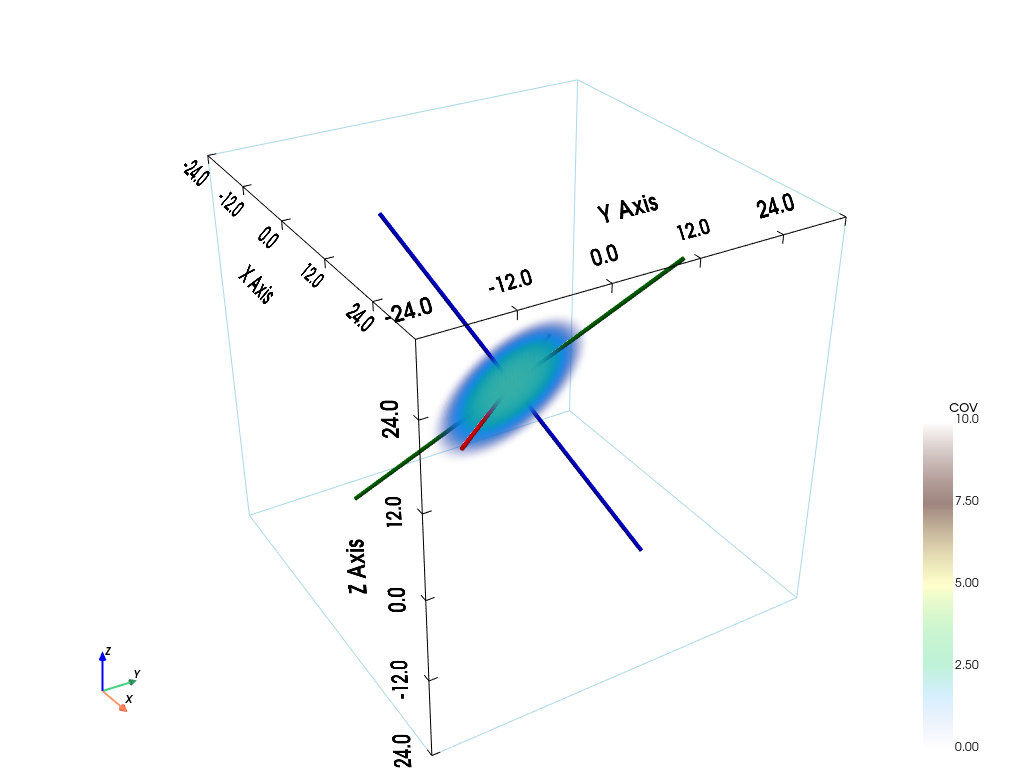

[7]:

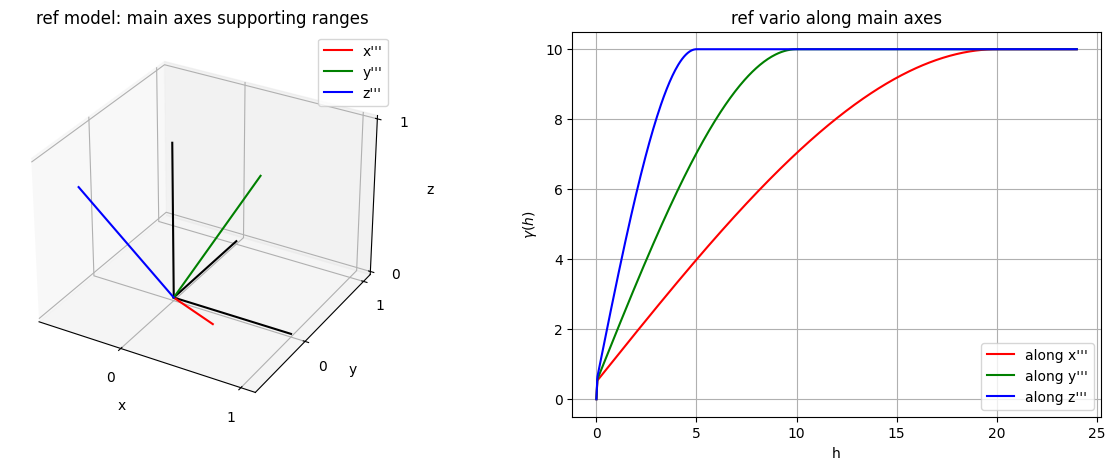

# Plot main axes supporting ranges and vario model curves along each main axis
fig = plt.figure(figsize=(15,5))
# ...plot main axes
fig.add_subplot(1,2,1, projection='3d')
cov_model_ref.plot_mrot(set_3d_subplot=False)
plt.title('ref model: main axes supporting ranges')
# ...plot variogram model curves along each main axis
fig.add_subplot(1,2,2)
cov_model_ref.plot_model_curves(vario=True)
plt.title('ref vario along main axes')
plt.show()
Generate a gaussian random field in 3D (see function geone.grf.grf3D), and extract data points:
n: number of data pointsx: location of data points (2-dimensional array of shape(n, 3), each row is a point)v: values at data points (1-dimensional array of lengthn)
[8]:
# Simulation grid (domain)
nx, ny, nz = 65, 64, 60 # number of cells
sx, sy, sz = 0.5, 0.5, 0.5 # cell unit
ox, oy, oz = 0.0, 0.0, 0.0 # origin
# Reference simulation
np.random.seed(123)
ref = gn.grf.grf3D(cov_model_ref, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz), nreal=1)
# 4d-array of shape 1 x nz x ny x nx
# Extract n points from the reference simulation
n = 150 # number of data points
ind = np.random.choice(nx*ny*nz, size=n, replace=False) # indexes of extracted grid cells
iz = ind//(nx*ny) # indexes along z-axis
ii = ind%(nx*ny)
iy = ii//nx # indexes along y-axis
ix = ii%nx # indexes along x-axis
xc = ox + (ix + 0.5)*sx # x-coordinates of data points (centers of the extracted grid cells)
yc = oy + (iy + 0.5)*sy # y-coordinates of data points (centers of the extracted grid cells)
zc = oz + (iz + 0.5)*sz # z-coordinates of data points (centers of the extracted grid cells)
#xc = ox + (ind + np.random.random(n))*sx # x-coordinates of data points (within the extracted grid cells)
#yc = oy + (ind + np.random.random(n))*sy # y-coordinates of data points (within the extracted grid cells)
#zc = oz + (ind + np.random.random(n))*sz # z-coordinates of data points (within the extracted grid cells)
x = np.array((xc, yc, zc)).T # array of coordinates of data points (shape: n x 3)
v = ref[0].reshape(-1)[ind] # value at data points
[9]:
# Preparation for plotting reference simulation and data points
# fill image (Img class from geone.img) for view
im_ref = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=1, val=ref)
# Color settings
cmap = 'terrain'
cmin = im_ref.vmin()[0] # min value in ref
cmax = im_ref.vmax()[0] # max value in ref
# Get colors for conditioning data according to their value and color settings
data_points_col = gn.imgplot.get_colors_from_values(v, cmap=cmap, cmin=cmin, cmax=cmax)
# Set points to be plotted
data_points = pv.PolyData(x)
data_points['colors'] = data_points_col
[10]:
# Plot reference simulation and data points
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(1,2), notebook=False)
# ... inline
pp = pv.Plotter(shape=(1,2))
pp.subplot(0, 0)
gn.imgplot3d.drawImage3D_volume(
im_ref,
plotter=pp,
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
text='Ref') # title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_slice(
im_ref,
plotter=pp,
slice_normal_x=ox+0.5*sx,
slice_normal_y=oy+(ny-0.5)*sy,
slice_normal_z=oz+0.5*sz,
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text='Ref and data points')
pp.add_mesh(data_points, rgb=True, point_size=12., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
Start from a data set in 3D
n: number of data pointsx: location of data points (2-dimensional array of shape(n, 3), each row is a point)v: values at data points (1-dimensional array of lengthn)
Visualise the data set and the histogram of values.
[11]:
# Set data_points
data_points = pv.PolyData(x)
data_points['data value'] = v
[12]:

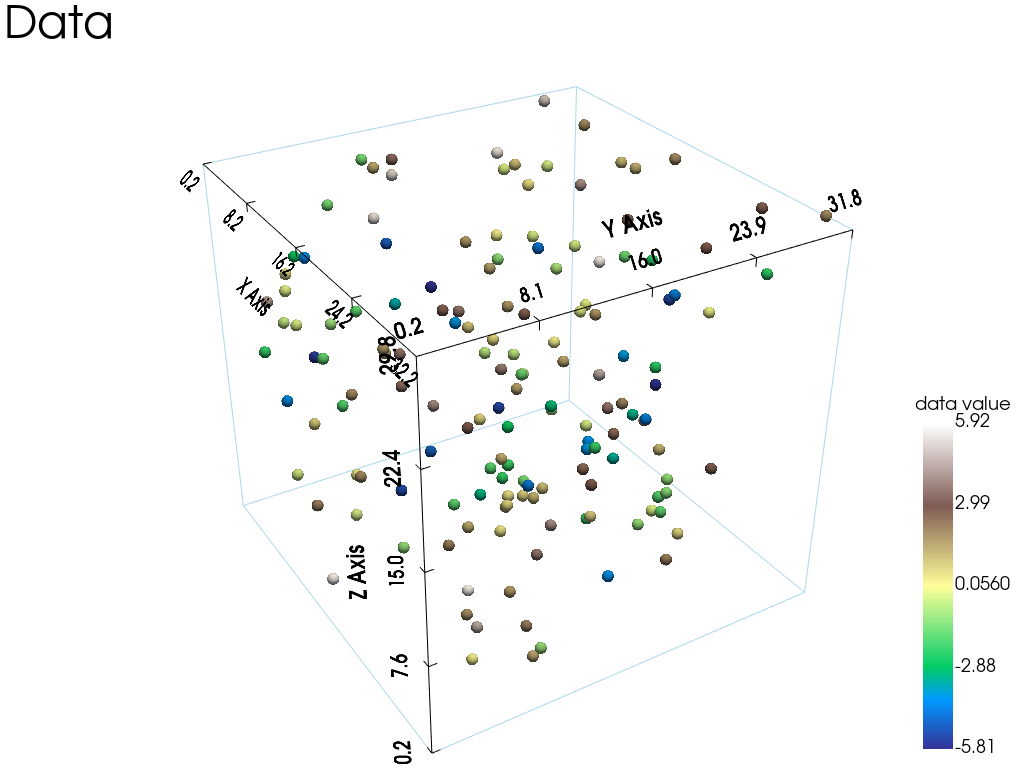

# Plot data points in 3D
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(notebook=False)
# ... inline
pp = pv.Plotter()
pp.add_mesh(data_points, cmap=cmap, point_size=12., render_points_as_spheres=True,
scalar_bar_args={'vertical':True, 'title_font_size':18})
pp.add_mesh(data_points.outline())
pp.show_bounds()
pp.add_text('Data')
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
[13]:
# Plot histogram of data values
plt.figure(figsize=(5,5))
plt.hist(v, color='lightblue', edgecolor='black')
plt.title('Histogram of data values, mean={:.2g}, var={:2g}'.format(np.mean(v), np.var(v)))
plt.show()
Model fitting
The function geone.covModel.covModel3D_fit is used to fit a covariance model in 3D (class geone.covModel.CovModel3D).
This function takes as first argument the location of the data points, as second argument the values at the data points, and at third argument a covariance model in 3D with given type of elementary contributions and with parameters to fit set to nan. It returns the optimal covariance model and the vector of optimal parameters.
This function is based on the function curve_fit from scipy.optimize module. It fits the curve of the variogram model to the points
, where
is the lag between a pair of data points and
is the half of the square of the difference of the values at these points. Hence, the fitting does not depend on the experimental variogram (see further), i.e. on the choice of direction or classes for the lags.
The function geone.covModel.covModel3D_fit also takes the keyword argument hmax, which specifies the maximal distance between two data points to be integrated in the fitting. Note that a plot of the optimal model returned is made by default (keyword argument make_plot=True).
Bounds for parameters to fit
Bounds for parameters to fit can be specified to avoid meaningless optimal parameters returned (e.g. negative weight or range). Such bounds are given to the function geone.covModel.covModel3D_fit (and then to the function curve_fit from scipy.optimize) via the keyword arguments bounds=(<array of lower bounds>, <array of upper bounds>), where the arrays of lower / upper bounds have the same length as the vector of parameters to fit, with the
th entry corresponding to
the
-th parameter to fit (set to nan) in the covariance model passed as third argument. Note also that the keyword argument p0 allows to specify a vector of initial parameters (see doc of function curve_fit).
[14]:
cov_model_to_optimize = gn.covModel.CovModel3D(
elem=[('gaussian', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('spherical', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('exponential', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('nugget', {'w':np.nan}) # elementary contribution
], alpha=np.nan, beta=np.nan, gamma=np.nan, name='')
cov_model_opt, popt = gn.covModel.covModel3D_fit(x, v, cov_model_to_optimize, #hmax=150,
bounds=([ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, .1, -90, -90, -90], # min value for param. to fit
[20, 30, 30, 30, 20, 30, 30, 30, 20, 30, 30, 30, 2, 90, 90, 90]), # max value for param. to fit
# gaus. contr., sph. contr. , exp. contr. , nug., angles: alpha, beta, gamma
make_plot=False)
cov_model_opt
[14]:
*** CovModel3D object ***
name = ''
number of elementary contribution(s): 4
elementary contribution 0
type: gaussian
parameters:
w = 3.2713744321470387e-06
r = [np.float64(17.01216322185156), np.float64(11.623385374676833), np.float64(0.5278624595601151)]
elementary contribution 1
type: spherical
parameters:
w = 7.650160279761836
r = [np.float64(29.998859625669176), np.float64(5.735934378015639), np.float64(8.863216853734368)]
elementary contribution 2
type: exponential
parameters:
w = 0.2545260407384066
r = [np.float64(0.19267474342278815), np.float64(14.826615761153587), np.float64(21.38686459424588)]
elementary contribution 3
type: nugget
parameters:
w = 0.10056057815496205
angles: alpha = 52.70617441678761, beta = 45.475254934618846, gamma = 10.848097969906284 (in degrees)
i.e.: the system Ox'''y''''z''', supporting the axes of the model (ranges),
is obtained from the system Oxyz as follows:
Oxyz -- rotation of angle -alpha around Oz --> Ox'y'z'
Ox'y'z' -- rotation of angle -beta around Ox' --> Ox''y''z''
Ox''y''z''-- rotation of angle -gamma around Oy''--> Ox'''y'''z'''
*****
[15]:

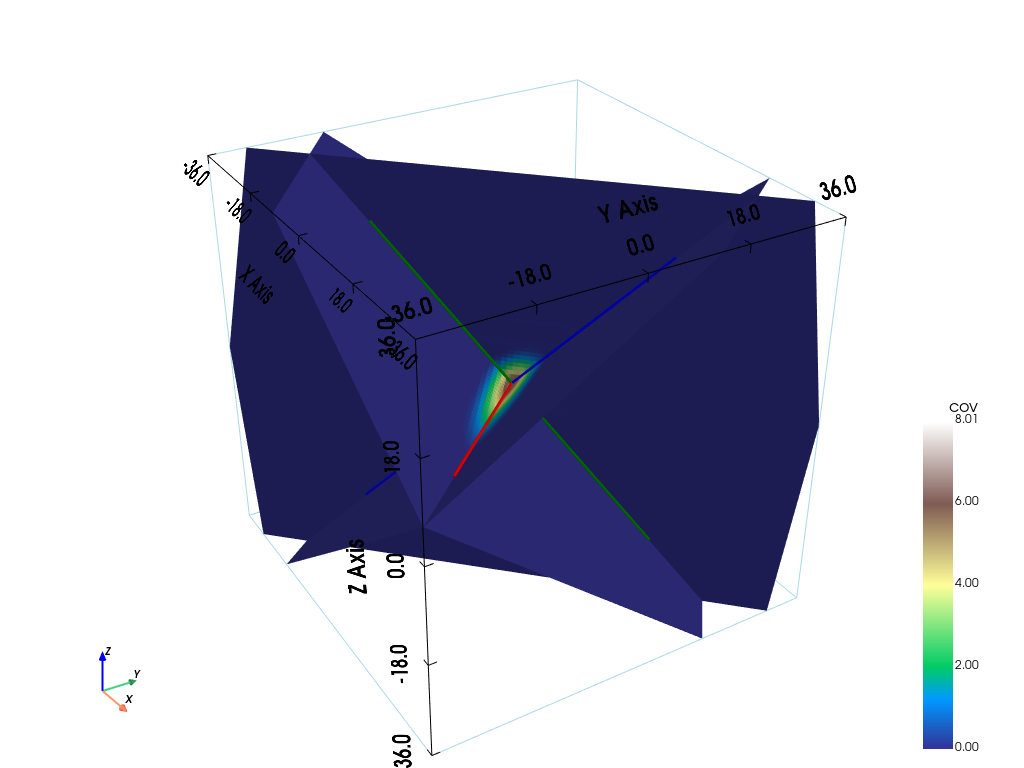

# Plot covariance model in 3D
# slice orthogonal to main axes in a 3D block
pp = pv.Plotter()
# pp = pv.Plotter(notebook=False) # open a plotter and specifying 'notebook=False'
cov_model_opt.plot_model3d_slice(plotter=pp)
cpos = pp.show(cpos=(165, -100, 115), return_cpos=True) # position of the camera can be specified
[16]:
# Plot main axes supporting ranges and vario model curves along each main axis
fig = plt.figure(figsize=(15,5))
# ...plot main axes
fig.add_subplot(1,2,1, projection='3d')
cov_model_opt.plot_mrot(set_3d_subplot=False)
plt.title('opt model: main axes supporting ranges')
# ...plot variogram model curves along each main axis
fig.add_subplot(1,2,2)
cov_model_opt.plot_model_curves(vario=True)
plt.title('opt vario along main axes')
plt.show()

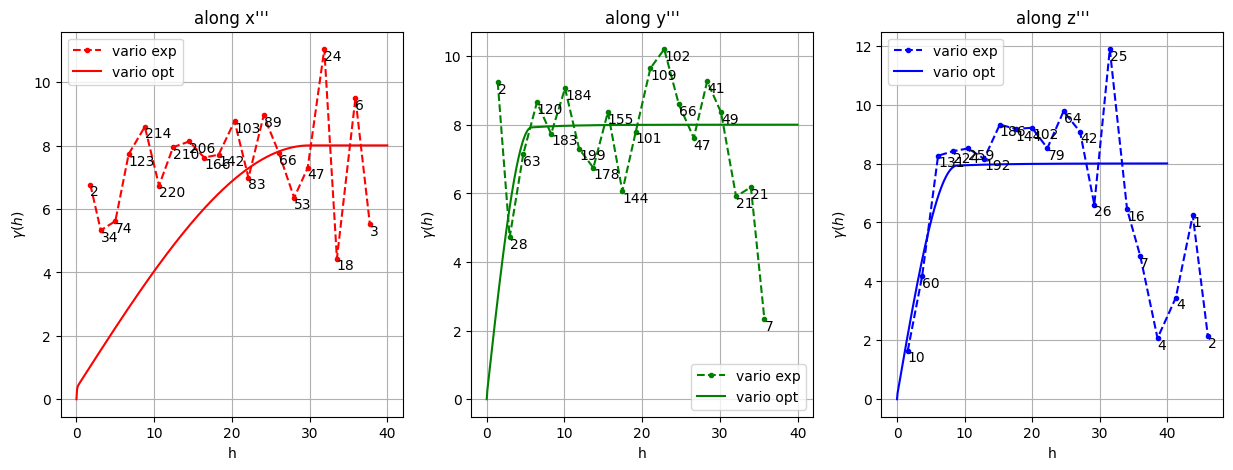

Check with the experimental variograms in the main directions (derived from optimal angles retrieved)
The function geone.covModel.variogramExp3D computes three directional exprimental variograms for a data set in 3D: one along each main axis (
,
and
). The system
is defined from the angle alpha, beta and gamma (keyword arguments alpha, beta and gamma) in the same way as for covariance model in 3D.
The keyword arguments tol_dist and tol_angle allow to control which pair of data points are taken into account in the two experimental variograms: a pair of points
is in the directional variogram cloud along axis (resp. , ) iff, given the lag vector
:
the distance from the end of vector
issued from origin to that axis is less than or equal to tol_distandthe angle between
and that axis is less than or equal to tol_angle
The maximal distance between two data points to be integrated can be specified by the keyword argument hmax (vector of three floats one for each axis), and the classes can be customized by using the keyword arguments ncla, cla_center, cla_length (each one is a vector of length 3, specification for each axis), in a similar way as explained for the function geone.covModel.variogramExp1D (see jupyter notebook ex_vario_analysis_data1D).
The function geone.covModel.variogramExp3D returns three experimental variograms “unidimensional” (see function geone.covModel.variogramExp1D and jupyter notebook ex_vario_analysis_data1D).
Note: the function geone.covModel.variogramCloud3D allows to compute variogram clouds along the main axes in a similar way.
[17]:
alpha_opt, beta_opt, gamma_opt = popt[-3:]
(hexp1, gexp1, cexp1), (hexp2, gexp2, cexp2), (hexp3, gexp3, cexp3) = gn.covModel.variogramExp3D(x, v,
alpha=alpha_opt, beta=beta_opt, gamma=gamma_opt, ncla=(20,20,20), make_plot=True, figsize=(16,12))
[18]:
plt.subplots(1,3,figsize=(15,5))
plt.subplot(1,3,1)
gn.covModel.plot_variogramExp1D(hexp1, gexp1, cexp1, c='red', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=1, hmax=40, c='red', label='vario opt')
plt.legend()
plt.title("along x'''")
plt.subplot(1,3,2)
gn.covModel.plot_variogramExp1D(hexp2, gexp2, cexp2, c='green', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=2, hmax=40, c='green', label='vario opt')
plt.legend()
plt.title("along y'''")
plt.subplot(1,3,3)
gn.covModel.plot_variogramExp1D(hexp3, gexp3, cexp3, c='blue', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=3, hmax=40, c='blue', label='vario opt')
plt.legend()
plt.title("along z'''")
plt.show()

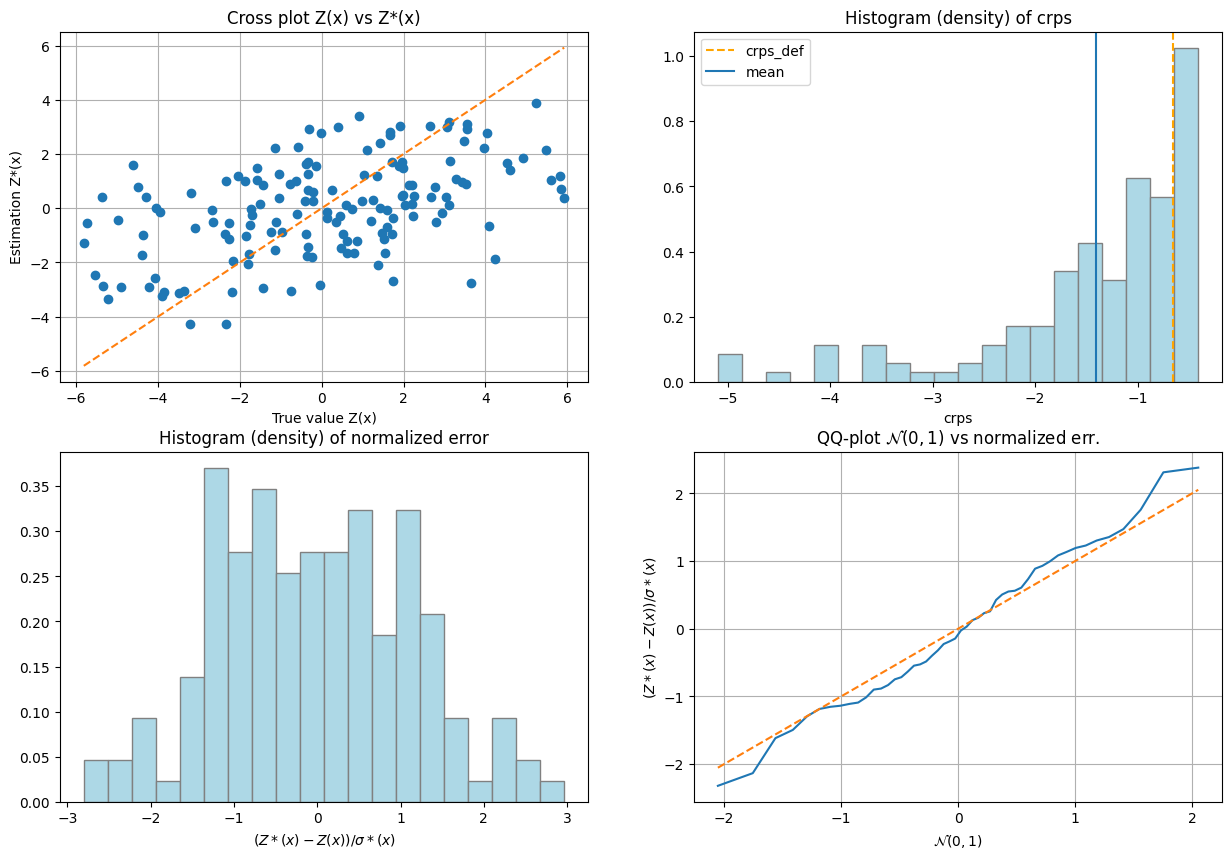

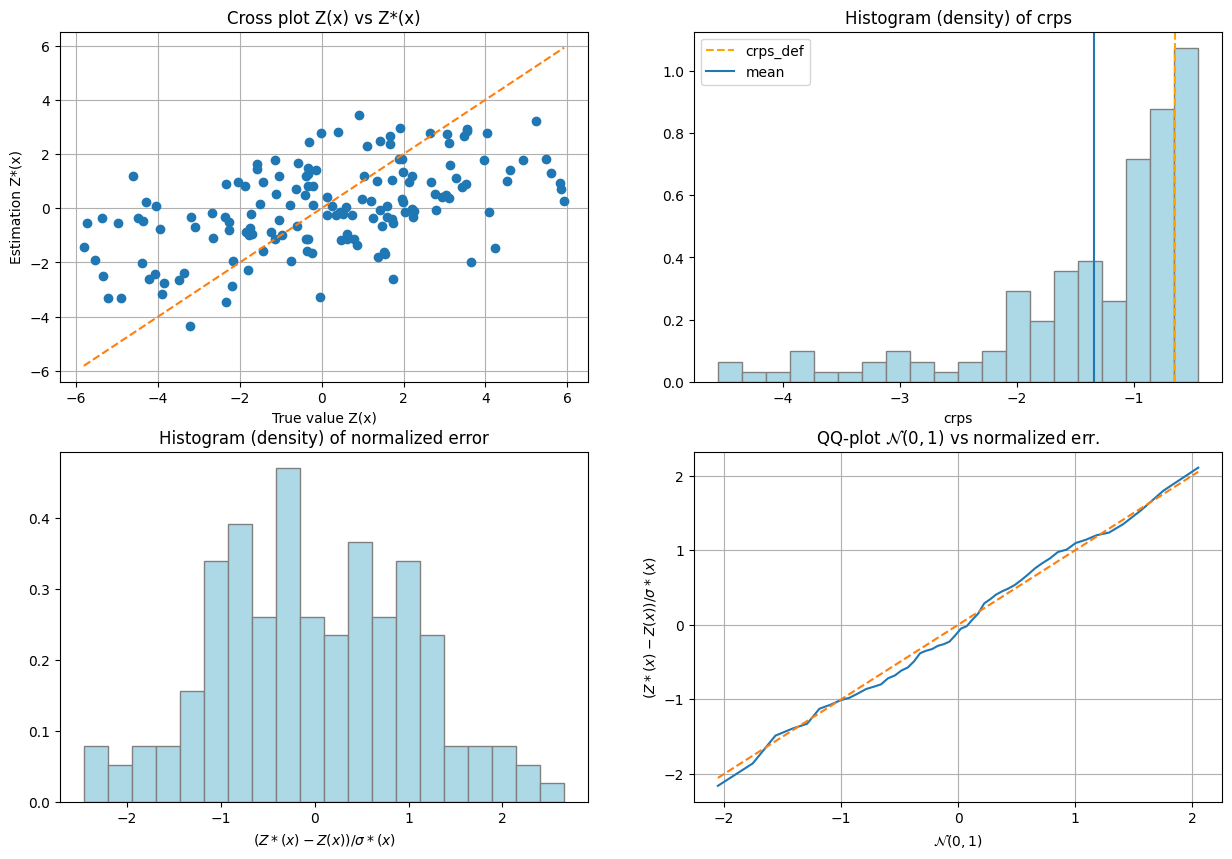

Cross-validation of covariance model by leave-one-out error
The function geone.covModel.cross_valid_loo makes a cross-validation test by leave-one-out (LOO) error. Here, a data set in 3D and a covariance model in 3D are given.
See jupyter notebook ex_vario_analysis_data1D for more details about this function.
[19]:
# Interpolation by simple kriging
cv_est1, cv_std1, crps1, crps_def1, pvalue1, success1 = gn.covModel.cross_valid_loo(
x, v, cov_model_opt,
interpolator=gn.covModel.krige,
interpolator_kwargs={'use_unique_neighborhood':True},
print_result=True, make_plot=True, figsize=(15,10), nbins=20)
plt.show()
----- CRPS (negative; the larger, the better) -----
mean = -1.409
def. = -0.6535
----- 1) "Normal law test for mean of normalized error" -----
p-value = 0.8361
success = True (wrt significance level 0.05)
(-> model has no reason to be rejected)
----- 2) "Chi-square test for sum of squares of normalized error" -----
p-value = 0.002865
success = False (wrt significance level 0.05)
-> model should be REJECTED
----- Statistics of normalized error -----
mean = -0.01689 (should be close to 0)
std = 1.161 (should be close to 1)
skewness = 0.1162 (should be close to 0)
excess kurtosis = -0.3154 (should be close to 0)
The second test failed, then the covariance model should be rejected! Then, the search for a convenient covariance model continues.
[20]:
# %%script false --no-raise-error # skip this cell! (comment this line to run the cell)
# Model fitting
cov_model_to_optimize = gn.covModel.CovModel3D(
elem=[('gaussian', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('spherical', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('exponential', {'w':np.nan, 'r':[np.nan, np.nan, np.nan]}), # elementary contribution
('nugget', {'w':np.nan}) # elementary contribution
], alpha=np.nan, beta=np.nan, gamma=np.nan, name='')
# New optim. while limiting the distance between pair of points to 30 (hmax=30)
# and limiting max ranges to 20 (instead of 30 above)
hmax = 30
cov_model_opt, popt = gn.covModel.covModel3D_fit(x, v, cov_model_to_optimize, hmax=hmax,
bounds=([ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, .1, -85, -85, -85], # min value for param. to fit
[20, 30, 30, 30, 20, 30, 30, 30, 20, 30, 30, 30, 2, 80, 80, 80]), # max value for param. to fit
# gaus. contr., sph. contr. , exp. contr. , nug., angles: alpha, beta, gamma
make_plot=False)
# Experimental variograms
alpha_opt, beta_opt, gamma_opt = popt[-3:]
(hexp1, gexp1, cexp1), (hexp2, gexp2, cexp2), (hexp3, gexp3, cexp3) = gn.covModel.variogramExp3D(x, v,
alpha=alpha_opt, beta=beta_opt, gamma=gamma_opt, hmax=(hmax, hmax, hmax), ncla=(20, 20, 20), make_plot=False)
# Figure: optimal vario and exp. vario along main axes given by alpha_opt, beta_opt, gamma_opt
plt.subplots(1,3,figsize=(16,6))
plt.subplot(1,3,1)
gn.covModel.plot_variogramExp1D(hexp1, gexp1, cexp1, c='red', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=1, hmax=hmax, c='red', label='vario opt')
plt.legend()
plt.title("along x'''")
plt.subplot(1,3,2)
gn.covModel.plot_variogramExp1D(hexp2, gexp2, cexp2, c='green', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=2, hmax=hmax, c='green', label='vario opt')
plt.legend()
plt.title("along y'''")
plt.subplot(1,3,3)
gn.covModel.plot_variogramExp1D(hexp3, gexp3, cexp3, c='blue', label='vario exp')
cov_model_opt.plot_model_one_curve(vario=True, main_axis=3, hmax=hmax, c='blue', label='vario opt')
plt.legend()
plt.title("along z'''")
plt.suptitle('alpha_opt={:.2g}, beta_opt={:.2g}, gamma_opt={:.2g}'.format(alpha_opt, beta_opt, gamma_opt))
plt.show()
# Cross-validation
# Interpolation by simple kriging (adapt also parameters (interpolator_kwargs) if needed)
cv_est1, cv_std1, crps1, crps_def1, pvalue1, success1 = gn.covModel.cross_valid_loo(
x, v, cov_model_opt,
interpolator=gn.covModel.krige,
interpolator_kwargs={'use_unique_neighborhood':True},
print_result=True, make_plot=True, figsize=(15,10), nbins=20)
plt.show()
/home/julien/miniconda3/envs/py313/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:3860: RuntimeWarning: Mean of empty slice.
return _methods._mean(a, axis=axis, dtype=dtype,
/home/julien/miniconda3/envs/py313/lib/python3.13/site-packages/numpy/_core/_methods.py:144: RuntimeWarning: invalid value encountered in scalar divide
ret = ret.dtype.type(ret / rcount)
----- CRPS (negative; the larger, the better) -----
mean = -1.346
def. = -0.6535
----- 1) "Normal law test for mean of normalized error" -----
p-value = 0.8484
success = True (wrt significance level 0.05)
(-> model has no reason to be rejected)
----- 2) "Chi-square test for sum of squares of normalized error" -----
p-value = 0.222
success = True (wrt significance level 0.05)
(-> model has no reason to be rejected)
----- Statistics of normalized error -----
mean = -0.01561 (should be close to 0)
std = 1.042 (should be close to 1)
skewness = 0.07152 (should be close to 0)
excess kurtosis = -0.437 (should be close to 0)
Note: the following illustrations are similar to what is done in the jupyter notebook ex_vario_analysis_data3D_1_omnidirectional.
Data interpolation by (simple or ordinary) kriging: function geone.covModel.krige
See notebook ex_vario_analysis_data1D_1.ipynb.
[21]:
# Define points xu where to interpolate
# ... location of the 3D-grid used to build the data set (but it could be different)
xcu = ox + (np.arange(nx)+0.5)*sx # x-coordinates of points
ycu = oy + (np.arange(ny)+0.5)*sy # y-coordinates of points
zcu = oz + (np.arange(nz)+0.5)*sz # z-coordinates of points
zzcu, yycu, xxcu = np.meshgrid(zcu, ycu, xcu, indexing='ij')
xu = np.array((xxcu.reshape(-1), yycu.reshape(-1), zzcu.reshape(-1))).T # 2-dimensional array
# of shape nx*ny*nz x 3
# Ordinary kriging
t1 = time.time()
vu, vu_std = gn.covModel.krige(x, v, xu, cov_model_opt, method='ordinary_kriging', use_unique_neighborhood=True)
# vu: 1-dimensional array, kriging estimates at location xu
# vu_std: 1-dimensional array, kriging standard deviation at location xu
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
# Fill image (Img class from geone.img) for view
# variable 0: kriging estimates
# variable 1: kriging standard deviation
im_krig = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=2, val=np.array((vu, vu_std)))
Elapsed time: 5.2 sec
[22]:
# Color settings
cmap = 'terrain'
cmin = im_krig.vmin()[0] # min value of kriging estimates
cmax = im_krig.vmax()[0] # max value of kriging estimates
# Get colors for conditioning data according to their value and color settings
data_points_col = gn.imgplot.get_colors_from_values(v, cmap=cmap, cmin=cmin, cmax=cmax)
# Set points to be plotted
data_points = pv.PolyData(x)
data_points['colors'] = data_points_col
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(2,2), notebook=False)
# ... inline
pp = pv.Plotter(shape=(2,2))
pp.subplot(0, 0)

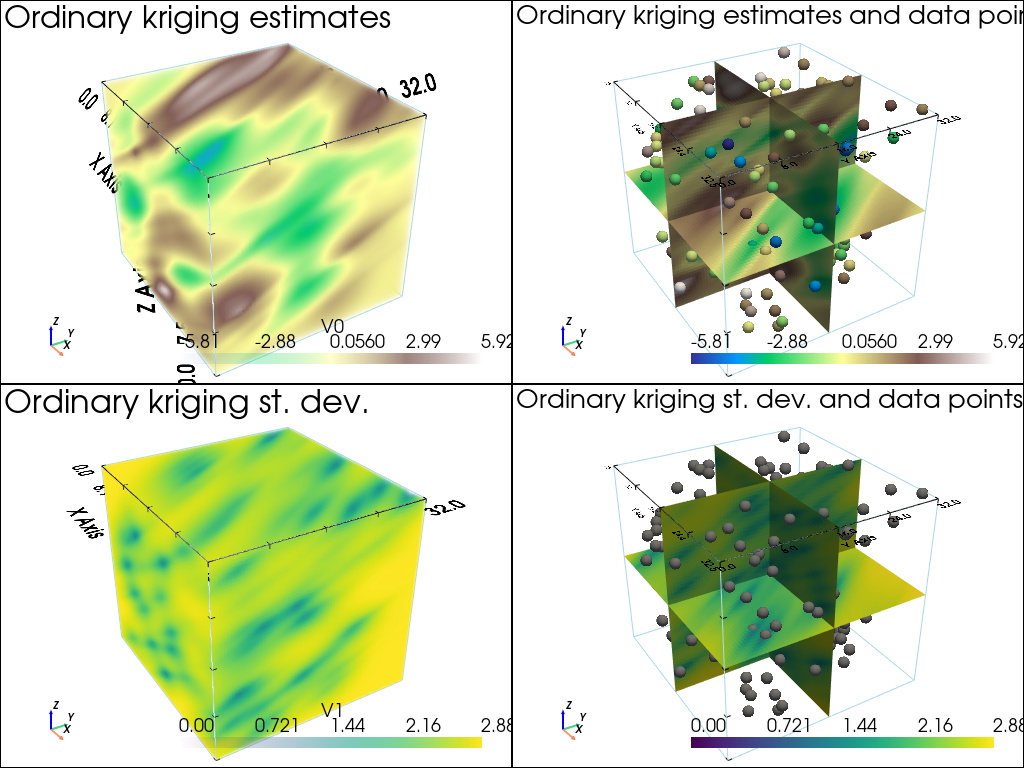

gn.imgplot3d.drawImage3D_volume(
im_krig, iv=0,
plotter=pp,
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
text='Ordinary kriging estimates') # title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text='Ordinary kriging estimates and data points') # title
pp.add_mesh(data_points, rgb=True, point_size=12., render_points_as_spheres=True)
pp.subplot(1, 0)
gn.imgplot3d.drawImage3D_volume(
im_krig, iv=1,
plotter=pp,
cmap='viridis',
show_bounds=True, # show axes and ticks around the 3D box
text='Ordinary kriging st. dev.') # title
pp.subplot(1, 1)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=1,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap='viridis',
show_bounds=True, # show axes and ticks around the 3D box
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text='Ordinary kriging st. dev. and data points') # title
pp.add_mesh(data_points, color='gray', point_size=12., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
[23]:
# Define points xu where to interpolate
# ... location of the 3D-grid used to build the data set (but it could be different)
xcu = ox + (np.arange(nx)+0.5)*sx # x-coordinates of points
ycu = oy + (np.arange(ny)+0.5)*sy # y-coordinates of points
zcu = oz + (np.arange(nz)+0.5)*sz # z-coordinates of points
zzcu, yycu, xxcu = np.meshgrid(zcu, ycu, xcu, indexing='ij')
xu = np.array((xxcu.reshape(-1), yycu.reshape(-1), zzcu.reshape(-1))).T # 2-dimensional array
# of shape nx*ny*nz x 3
# Simple kriging
t1 = time.time()
vu, vu_std = gn.covModel.krige(x, v, xu, cov_model_opt, method='simple_kriging', use_unique_neighborhood=True)
# vu: 1-dimensional array, kriging estimates at location xu
# vu_std: 1-dimensional array, kriging standard deviation at location xu
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
# Fill image (Img class from geone.img) for view
# variable 0: kriging estimates
# variable 1: kriging standard deviation
im_krig = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=2, val=np.array((vu, vu_std)))
Elapsed time: 5.6 sec
[24]:
# Color settings
cmap = 'terrain'
cmin = im_krig.vmin()[0] # min value of kriging estimates
cmax = im_krig.vmax()[0] # max value of kriging estimates
# Get colors for conditioning data according to their value and color settings
data_points_col = gn.imgplot.get_colors_from_values(v, cmap=cmap, cmin=cmin, cmax=cmax)
# Set points to be plotted
data_points = pv.PolyData(x)
data_points['colors'] = data_points_col
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(2,2), notebook=False)
# ... inline
pp = pv.Plotter(shape=(2,2))
pp.subplot(0, 0)
gn.imgplot3d.drawImage3D_volume(
im_krig, iv=0,
plotter=pp,
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
text='Simple kriging estimates') # title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap, cmin=cmin, cmax=cmax,
show_bounds=True, # show axes and ticks around the 3D box
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text='Simple kriging estimates and data points') # title
pp.add_mesh(data_points, rgb=True, point_size=12., render_points_as_spheres=True)
pp.subplot(1, 0)
gn.imgplot3d.drawImage3D_volume(
im_krig, iv=1,
plotter=pp,
cmap='viridis',
show_bounds=True, # show axes and ticks around the 3D box
text='Simple kriging st. dev.') # title
pp.subplot(1, 1)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=1,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap='viridis',
show_bounds=True, # show axes and ticks around the 3D box
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text='Simple kriging st. dev. and data points') # title
pp.add_mesh(data_points, color='gray', point_size=12., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified

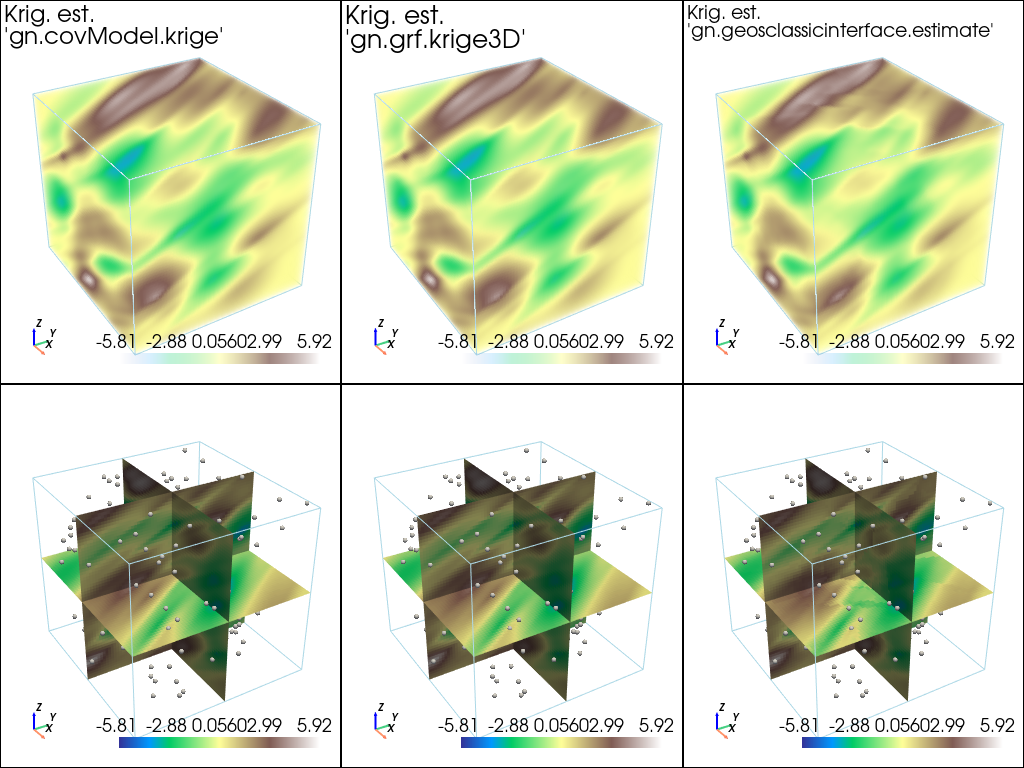

Kriging estimation and simulation in a grid
The function above (gn.covModel.krige and gn.covModel.sgs[_mp]) should not be used for kriging and SGS in a regular grid. Use the dedicated functions (much faster):
geone.geosclassicinterface.estimate: estimation (kriging) in a gridgeone.geosclassicinterface.simulate: simulation (SGS) in a gridgeone.grf.krige<d>D: estimation (kriging) in a<d>-dimensional gridgeone.grf.grf<d>D: simulation (SGS) in a<d>-dimensional grid
Note: the functions of the module ``geone.grf`` are based on “Fast Fourier Transform” and allow for simple kriging only, and do not handle error on data or inequality data.
Note: the function ``geone.multiGaussian.multiGaussianRun`` can be used as a wrapper to run the functions above.
See notebook ex_vario_analysis_data1D_1.ipynb.
Examples
Estimation using the function geone.covModel.krige
[25]:
t1 = time.time()
vu, vu_std = gn.covModel.krige(x, v, xu, cov_model_opt, method='simple_kriging', use_unique_neighborhood=True)
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
Elapsed time: 5.2 sec
Estimation using the function geone.grf.krige3D
Via the function geone.multiGaussian.multiGaussianRun, with keyword arguments mode='estimation', algo='fft'.
[26]:
t1 = time.time()
im_grf = gn.multiGaussian.multiGaussianRun(
cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
x=x, v=v,
mode='estimation', algo='fft', output_mode='img')
# # Or:
# vu_grf, vu_std_grf = gn.grf.krige3D(
# cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
# x=x, v=v)
# im_grf = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=2, val=np.array((vu_grf, vu_std_grf)))
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
krige3D: compute circulant embedding...
krige3D: embedding dimension: 128 x 128 x 128
krige3D: compute FFT of circulant matrix...
krige3D: compute covariance matrix (rAA) for conditioning locations...
krige3D: compute covariance matrix (rBA) for non-conditioning / conditioning locations...
krige3D: compute rBA * rAA^(-1)...
krige3D: compute kriging estimates...
krige3D: compute kriging standard deviation ...
Elapsed time: 2.1 sec
Estimation using the function geone.geosclassicinterface.estimate
Via the function geone.multiGaussian.multiGaussianRun, with keyword arguments mode='estimation', algo='classic'.
[27]:
t1 = time.time()
im_gci = gn.multiGaussian.multiGaussianRun(
cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
x=x, v=v,
mode='estimation', algo='classic', output_mode='img',
method='simple_kriging',
nneighborMax=24,
nthreads=8)
# # Or:
# estim_gci = gn.geosclassicinterface.estimate(
# cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
# x=x, v=v,
# method='simple_kriging',
# nneighborMax=24,
# nthreads=8)
# im_gci = estim_gci['image']
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
estimate: pre-process data done: final number of data points : 150, inequality data points: 0
estimate: computational resources: nthreads = 8, nproc_sgs_at_ineq = 8
estimate: (Step 1) no inequality data
estimate: (Step 2) set new dataset gathering data and inequality data locations...
estimate: (Step 3) do kriging at the center of grid cells containing at least one data point...
estimate: (Step 4) do kriging on the grid (at cell centers) using data points at cell centers...
estimate: call `run_MPDSOMPGeosClassicSim` [1 process of 8 thread(s) (OpenMP)] ...
estimate: `run_MPDSOMPGeosClassicSim` [1 process] complete
estimate: warnings encountered (5285 times in all):
# 1: WARNING 02001: a neigbhor has been dropped (solving kriging system)
# 2: WARNING 02015: solving kriging system fails (do as if no neighbor)
Elapsed time: 21 sec
Plot results of estimation
[28]:
# Fill images (Img class from geone.img) for view
# variable 0: kriging estimates
# variable 1: kriging standard deviation
im_krig = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=2, val=np.array((vu, vu_std)))
[29]:
# Plot kriging estimates
# Color settings
cmap = 'terrain'
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(2,3), notebook=False)
# ... inline
pp = pv.Plotter(shape=(2,3))
pp.subplot(0, 0)
gn.imgplot3d.drawImage3D_volume(
im_krig, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text="Krig. est.\n'gn.covModel.krige'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_volume(
im_grf, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Krig. est.\n'gn.grf.krige3D'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(0, 2)
gn.imgplot3d.drawImage3D_volume(
im_gci, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Krig. est.\n'gn.geosclassicinterface.estimate'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(1, 0)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 1)
gn.imgplot3d.drawImage3D_slice(
im_grf, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 2)
gn.imgplot3d.drawImage3D_slice(
im_gci, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
[30]:
# Plot kriging standard deviation
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(2,3), notebook=False)
# ... inline
pp = pv.Plotter(shape=(2,3))
pp.subplot(0, 0)
gn.imgplot3d.drawImage3D_volume(
im_krig, iv=1,
plotter=pp,
cmap='viridis',
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text="Krig. st. dev.\n'gn.covModel.krige'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_volume(
im_grf, iv=1,
plotter=pp,
cmap='viridis',
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Krig. st. dev.\n'gn.grf.krige3D'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(0, 2)
gn.imgplot3d.drawImage3D_volume(
im_gci, iv=1,
plotter=pp,
cmap='viridis',
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Krig. st. dev.\n'gn.geosclassicinterface.estimate'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(1, 0)
gn.imgplot3d.drawImage3D_slice(
im_krig, iv=1,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap='viridis',
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 1)
gn.imgplot3d.drawImage3D_slice(
im_grf, iv=1,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap='viridis',
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 2)
gn.imgplot3d.drawImage3D_slice(
im_gci, iv=1,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap='viridis',
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
[31]:
print("Peak-to-peak estimation 'gn.covModel.krige - gn.grf.krige3D' = {}".format(np.ptp(im_krig.val[0] - im_grf.val[0])))
print("Peak-to-peak estimation 'gn.covModel.krige - gn.geosclassicinterface.estimate' = {}".format(np.ptp(im_krig.val[0] - im_gci.val[0])))
print("Peak-to-peak estimation 'gn.grf.krige3D - gn.geosclassicinterface.estimate' = {}".format(np.ptp(im_grf.val[0] - im_gci.val[0])))
print("Peak-to-peak st. dev. 'gn.covModel.krige - gn.grf.krige3D' = {}".format(np.ptp(im_krig.val[1] - im_grf.val[1])))
print("Peak-to-peak st. dev. 'gn.covModel.krige - gn.geosclassicinterface.estimate' = {}".format(np.ptp(im_krig.val[1] - im_gci.val[1])))
print("Peak-to-peak st. dev. 'gn.grf.krige3D - gn.geosclassicinterface.estimate' = {}".format(np.ptp(im_grf.val[1] - im_gci.val[1])))
Peak-to-peak estimation 'gn.covModel.krige - gn.grf.krige3D' = 0.045740572250433514
Peak-to-peak estimation 'gn.covModel.krige - gn.geosclassicinterface.estimate' = 3.591151533608848
Peak-to-peak estimation 'gn.grf.krige3D - gn.geosclassicinterface.estimate' = 3.591151533608846
Peak-to-peak st. dev. 'gn.covModel.krige - gn.grf.krige3D' = 0.0001269298078985237
Peak-to-peak st. dev. 'gn.covModel.krige - gn.geosclassicinterface.estimate' = 0.3102542963297359
Peak-to-peak st. dev. 'gn.grf.krige3D - gn.geosclassicinterface.estimate' = 0.3102542367250911
Conditional simulation using the function geone.grf.grf3D
Via the function geone.multiGaussian.multiGaussianRun, with keyword arguments mode='simulation', algo='fft'.
[32]:
np.random.seed(293)
t1 = time.time()
nreal = 20
im_sim_grf = gn.multiGaussian.multiGaussianRun(
cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
x=x, v=v,
mode='simulation', algo='fft', output_mode='img',
nreal=nreal)
# # Or:
# sim_grf = gn.grf.grf3D(
# cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
# x=x, v=v,
# nreal=nreal)
# im_sim_grf = gn.img.Img(nx, ny, nz, sx, sy, sz, ox, oy, oz, nv=nreal, val=sim_grf)
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
grf3D: do preliminary computation...
grf3D: compute circulant embedding...
grf3D: embedding dimension: 128 x 128 x 128
grf3D: compute FFT of circulant matrix...
grf3D: treatment of conditioning data...
grf3D: compute covariance matrix (rAA) for conditioning locations...
grf3D: compute index in the embedding grid for non-conditioning / conditioning locations...
Elapsed time: 6.4 sec
Conditional simulation using the function geone.geosclassicinterface.simulate
Via the function geone.multiGaussian.multiGaussianRun, with keyword arguments mode='simulation', algo='classic', and specifying the computational resources (nproc and nthreads_per_proc).
[33]:
np.random.seed(293)
t1 = time.time()
nreal = 20
im_sim_gci = gn.multiGaussian.multiGaussianRun(
cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
x=x, v=v,
mode='simulation', algo='classic', output_mode='img',
method='simple_kriging',
nreal=nreal,
nproc=4, nthreads_per_proc=4)
# # Or:
# sim_gci = gn.geosclassicinterface.simulate(
# cov_model_opt, (nx, ny, nz), (sx, sy, sz), (ox, oy, oz),
# x=x, v=v,
# method='simple_kriging',
# nreal=nreal,
# nproc=4, nthreads_per_proc=4)
# im_sim_gci = sim_gci['image']
t2 = time.time()
print('Elapsed time: {:.2g} sec'.format(t2-t1))
simulate: pre-process data done: final number of data points : 150, inequality data points: 0
simulate: computational resources: nproc = 4, nthreads_per_proc = 4, nproc_sgs_at_ineq = 16
simulate: (Step 1) no inequality data
simulate: (Step 2) set new dataset gathering data and inequality data locations...
simulate: (Step 3) do kriging at the center of grid cells containing at least one data point...
simulate: (Step 4) do sgs (20 realizations) on the grid (at cell centers) using data points at cell centers...
simulate: call `run_MPDSOMPGeosClassicSim` [4 process(es) of 4 thread(s) (OpenMP)] ...
simulate: `run_MPDSOMPGeosClassicSim` [4 process(es)] complete
simulate: warnings encountered (14 times in all):
# 1: WARNING 02001: a neigbhor has been dropped (solving kriging system)
Elapsed time: 5.9 sec
Plot some realizations and compare to the reference simulation
[34]:
# min and max over all real and ref. sim
im_vmin = min(np.min(im_sim_grf.vmin()), np.min(im_sim_gci.vmin()), im_ref.vmin()[0])
im_vmax = max(np.max(im_sim_grf.vmax()), np.min(im_sim_gci.vmax()), im_ref.vmax()[0])
[35]:
# Color settings
cmap = 'terrain'
# Plot "interactive in pop-up window" or "inline" (comment the undesired one) ...
# ... interactive (after closing the pop-up window, the position of the camera is retrieved in output)
#pp = pv.Plotter(shape=(2,3), notebook=False)
# ... inline
pp = pv.Plotter(shape=(2,3))
pp.subplot(0, 0)
gn.imgplot3d.drawImage3D_volume(
im_ref, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':''}, # distinct title in each subplot for correct display!
text="Ref. sim") # title
pp.subplot(0, 1)
gn.imgplot3d.drawImage3D_volume(
im_sim_grf, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Real. #0\n'gn.grf.grf3D'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(0, 2)
gn.imgplot3d.drawImage3D_volume(
im_sim_gci, iv=0,
plotter=pp,
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text="Real. #0\n'gn.geosclassicinterface.simulate'", # title
text_kwargs={'font_size':14}) # font size for title
pp.subplot(1, 0)
gn.imgplot3d.drawImage3D_slice(
im_ref, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 1)
gn.imgplot3d.drawImage3D_slice(
im_sim_grf, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.subplot(1, 2)
gn.imgplot3d.drawImage3D_slice(
im_sim_gci, iv=0,
plotter=pp,
slice_normal_x=ox+(0.5+nx//2)*sx, # near central cell along x
slice_normal_y=oy+(0.5+ny//2)*sy, # near central cell along y
slice_normal_z=oz+(0.5+nz//2)*sz, # near central cell along z
cmap=cmap,
scalar_bar_kwargs={'title':' '}, # distinct title in each subplot for correct display!
text=None) # title
pp.add_mesh(data_points, color=(0.9, 0.9, 0.9), point_size=5., render_points_as_spheres=True)
pp.link_views()
pp.show(cpos=(165, -100, 115)) # position of the camera can be specified
The retained optimal covariance model has angles differing from those of the reference covariance model (which were considered unknown!), this is why the orientations of the structures slightly differ comparing the realizations above and the reference.
[36]:
# Comparison of "optimal model" and "reference model"
fig = plt.figure(figsize=(15,10))
# ...plot main axes (ref model)
fig.add_subplot(2,2,1, projection='3d')
cov_model_ref.plot_mrot(set_3d_subplot=False)
plt.title('ref model: main axes supporting ranges')
# ...plot variogram model curves along each main axis (ref model)
fig.add_subplot(2,2,2)
cov_model_ref.plot_model_curves(vario=True)
plt.title('ref vario along main axes')
# ...plot main axes (opt model)
fig.add_subplot(2,2,3, projection='3d')
cov_model_opt.plot_mrot(set_3d_subplot=False)
plt.title('opt model: main axes supporting ranges')
# ...plot variogram model curves along each main axis (opt model)
fig.add_subplot(2,2,4)
cov_model_opt.plot_model_curves(vario=True)
plt.title('opt vario along main axes')
plt.show()
